SMT Customizable Placement Head Module BT12812
Our precision-engineered pick and place head module delivers exceptional durability and efficiency for loading/unloading, tray handling, and film application tasks.
Z-axis maximum speedreciprocating in 0.45 seconds
R-aixs concentricity0.05-0.2 mm
Vertical repeatability0.03 mm
Maximum vertical stroke range70 mm
Net weight1000 g
Motor frame diameter28 mm
Number of axes2 axis
Carton dimensions380*340*200 mm
Functions and features:
1. Z-axis vertical movement
2. 360° rotation on the R-axis
3. Z-axis is installed in a lower position, featuring flexible and convenient operation
4. Vacuum suction and vacuum breaker
5. ZR motor is optional with the same specification open-loop and closed-loop motors, R-axis is optional hollow-core motor.
Key parameters:
1. Z-axis maximum speed: reciprocating in 0.35 seconds
2. R-aixs concentricity: 0.05 mm - 0.2 mm * decided by the configuration of the optional R-axis model
3. Maximum vertical stroke range: 50 mm
4. Weight: 900 ± 50 g
5. Vertical repeatability: 0.03 mm
Stepper motor parameter
1. Step angle: 1.8° ±5% 2. Number of phase: 2 3. Phase voltage: 2.1 VDC 4. Phase current: 1.0 Amp 5. Phase resistance: 2.1 Ω ±10% (at 20℃) 6. Phase inductance: 1.5 mH ±20% 7. Insulation class: Class B 8. Insulation resistance: 100 MΩ min. (500 VDC) 9. Ambient temperature: -20℃ to ＋50℃ 10. Ambient humidity: 15% to 95% 11. Motor weight: Approx. 120 g 12. Operating voltage: 12-24 VDC
| Z-axis maximum speed | reciprocating in 0.45 seconds |
| R-aixs concentricity | 0.05-0.2 mm |
| Vertical repeatability | 0.03 mm |
| Maximum vertical stroke range | 70 mm |
| Net weight | 1000 g |
| Motor frame diameter | 28 mm |
| Number of axes | 2 axis |
| Carton dimensions | 380*340*200 mm |

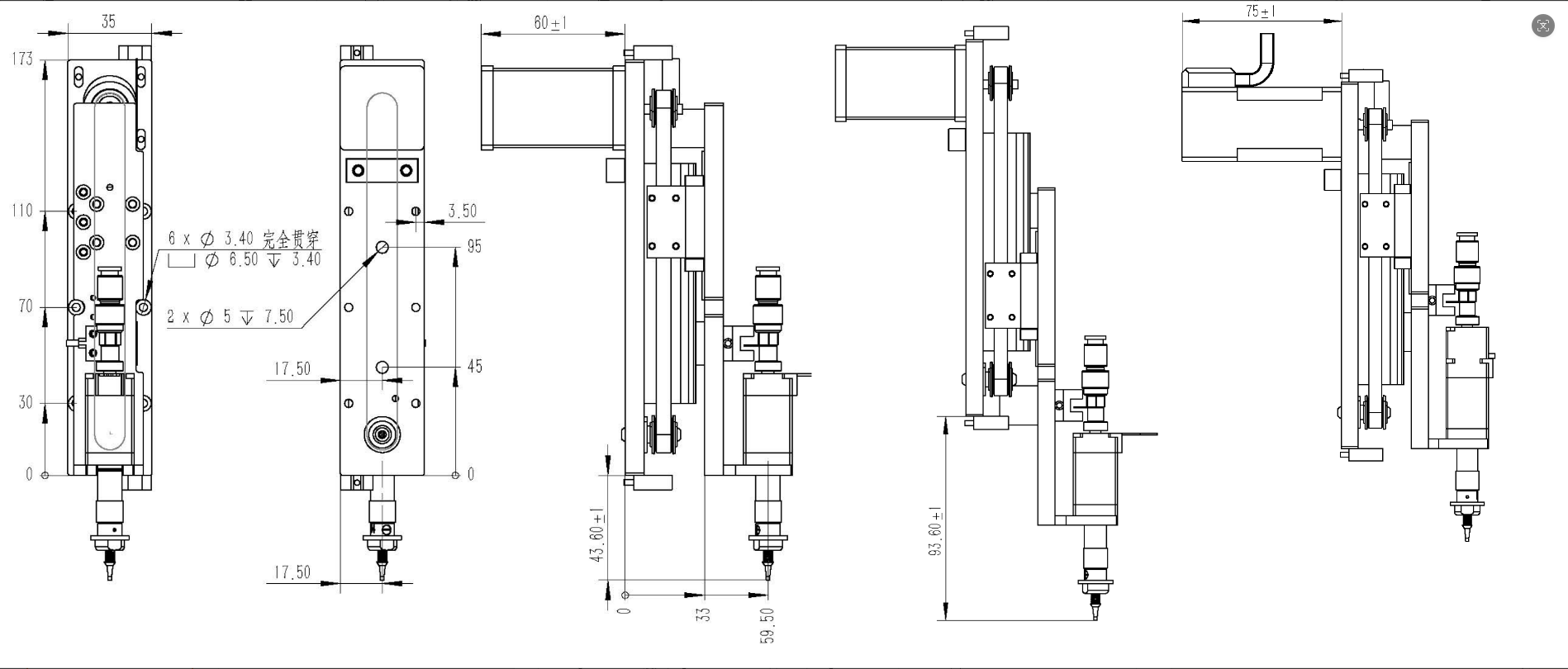

Detailed engineering drawings
Custom nozzle and placement head engineering services from our experienced automation team.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
