BEIZHI supports equipment builders with product selection, module configuration, nozzle matching and reference drawings for SMT and custom automation applications.
Pick-and-place assemblies work as a combination of motion module, placement head, nozzle, connecting bar and vacuum-related parts. The correct direction depends on the workpiece, required movement, installation space and target working cycle.
For common applications, our team can help clarify the component structure before you proceed with a product selection or customized design request.
✓ Clarify pickup method, workpiece geometry and material conditions
✓ Review Z-axis stroke, R-axis rotation and mounting direction
✓ Match nozzle, connecting bar and vacuum component combinations
✓ Discuss station count, pitch and system layout for multi-head projects
Use the support path that matches your current project stage—from an initial component question to a detailed custom configuration review.
Identify a suitable product direction from the main component categories: pickup heads, ZR modules, nozzles, connecting bars and supporting vacuum parts.
Review the relevant motion factors, including vertical stroke, R-axis rotation, motor selection, mounting orientation and working-station structure.
Discuss nozzle form and vacuum pickup requirements when standard options do not match the product shape, dimensions or handling condition.
Use reference drawings and model-code logic to align the selected configuration with your installation conditions and intended function.
BEIZHI multi-station models can describe key structural details, such as module type, number of stations, vertical stroke, station pitch, Z-axis motor arrangement, closed-loop status and selected placement head.
Ask About Your Configuration →Synchronous-belt module with six workstations.
50 mm vertical stroke range.
22 mm pitch between each workstation.
Top-mounted Z-axis motor arrangement with closed-loop motor option.
Single R-axis placement head with matched accessories and closed-loop motor option.

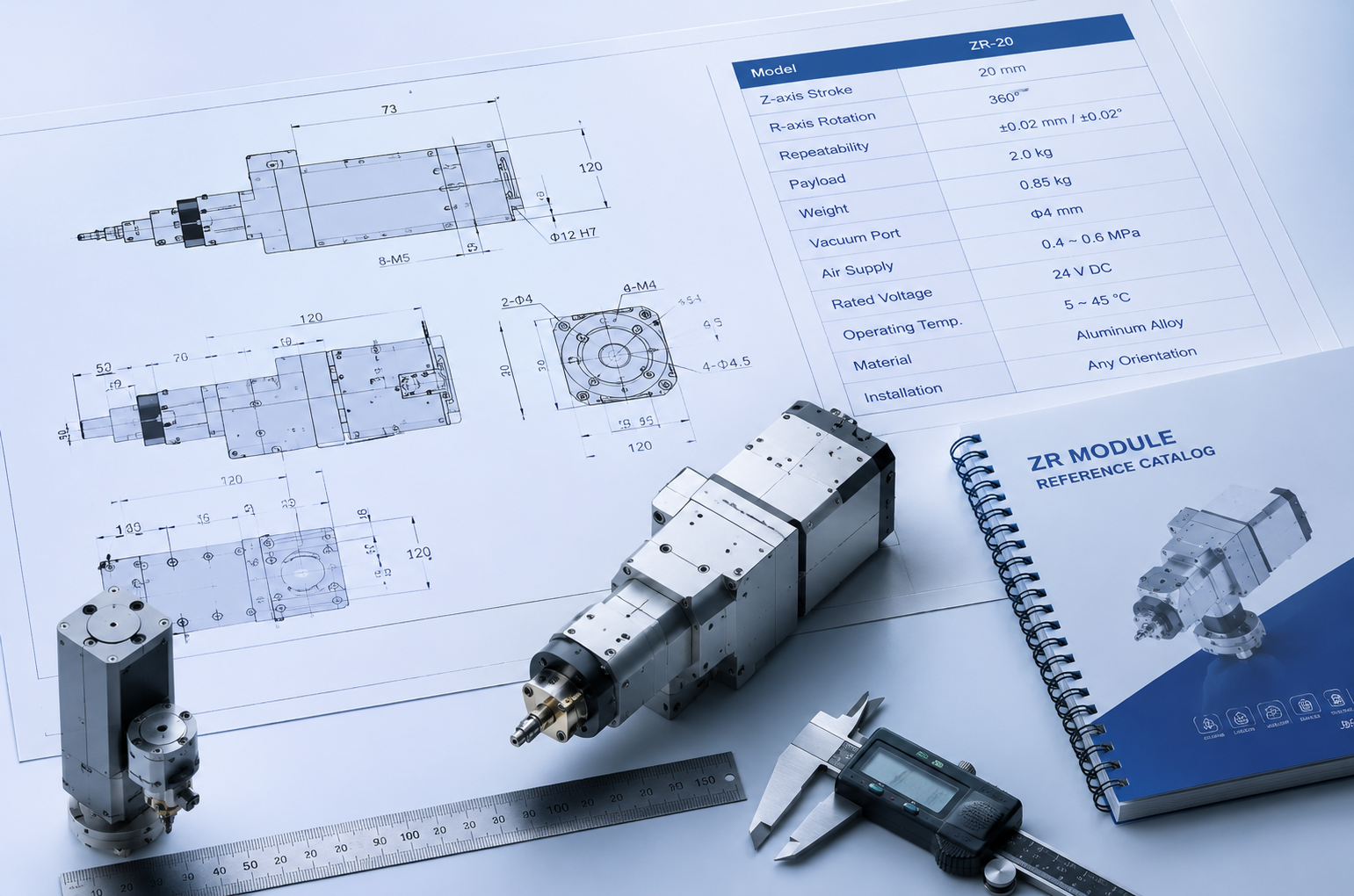

Product drawings and parameter sheets help verify available movement and installation details. Depending on the selected model, ZR modules can combine Z-axis vertical movement, R-axis rotation, vacuum suction and vacuum break functions.
Custom nozzle options can be developed around the part dimensions and pickup condition. Supplying clear workpiece information, a drawing or sample details helps establish the correct direction for a customized nozzle conversation.
Material, shape and key pickup surfaces.
Relevant sizes, tolerances and available clearance.
Pickup orientation, target cycle and placement condition.
Providing the following information helps make the initial technical discussion more focused and practical.
Describe the pickup, transfer, rotation or placement task your equipment needs to perform.
Send material, shape, key dimensions and photos or drawings where available.
Share required stroke, rotation, cycle target, station count and mounting limitations.
Provide the current head, nozzle, motor or mechanical interface details when replacing or upgrading a part.
Our engineering team can provide matching suggestions based on process, dimensions, takt time and installation conditions.
