Servo Motor Placement Head Module BT125S03
Built with advanced technology, this pick and place head module offers versatile performance in loading/unloading and film application, ensuring long-term reliability.
Z-axis maximum speedreciprocating in 0.2 seconds
R-aixs concentricity0.05 - 0.2 mm
Vertical repeatability0.02 mm
Maximum vertical stroke range50 mm
Net weight1200 g
Low-voltage48 c
Number of axes2 axis
Carton dimensions380*340*200 mm
Functions and features:
1. Z-axis vertical movement
2. 360° rotation on the R-axis
3. Z-axis is installed in a lower position, featuring flexible and convenient operation
4. Vacuum suction and vacuum breaker
5. ZR motor is 100W low-voltage DC 48V 33W servo motor
Key parameters:
1. Z-axis maximum speed: reciprocating in 0.2 seconds
2. R-aixs concentricity: 0.05 mm - 0.2 mm * decided by the configuration of the optional R-axis model
3. Maximum vertical stroke range: 50mm
4. Weight: 1.2 kg ± 50 g
5. Vertical repeatability: 0.02 mm
Servo motor parameter
1. Rated Voltage: 48 VDC 2. Rated Power: 33 W 3. Pole Pairs: 5 4. Static Torque: 0.105 Nm 5. Rated Torque: 0.105 Nm 6. Peak Torque: 0.315 Nm 7. Static Current：2 Arms 8. Rated Current: 2 Arms 9. Peak Current: 6 Arms 10. Rated Speed: 3000 rpm 11. Max Speed: 6000 rpm 12. Torque Coefficient: 0.0525 Nm/A 13. Moment of Inertia: 6.7 14. Protection Rating: IP54 15. Insulation Class: Class F 16. Phase Resistance: 3.5 Ohm 17. Phase Inductance: 0.92 mH 18. Back EMF: 3.5 V/krpm 19. Motor Total Length (L): 73.5 mm
| Z-axis maximum speed | reciprocating in 0.2 seconds |
| R-aixs concentricity | 0.05-0.2 mm |
| Vertical repeatability | 0.02 mm |
| Maximum vertical stroke range | 50 mm |
| Net weight | 1200 g |
| Low-voltage | 48 V |
| Number of axes | 2 axis |
| Carton dimensions | 380*340*200 mm |

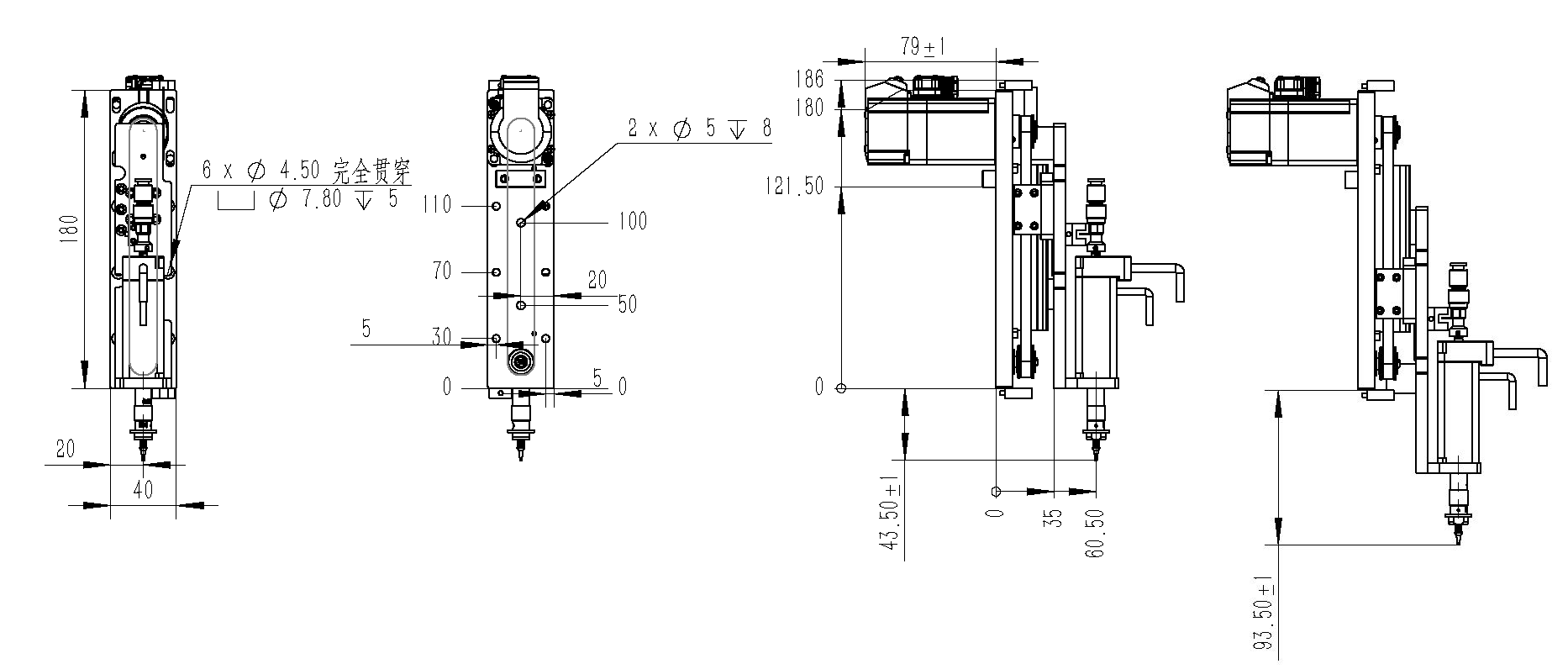

Detailed engineering drawings
Our engineers provide customized automation solutions for loading, unloading, and tray handling systems.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
