SMT High Performance Placement Head BT12808
Built for high-speed precision, our pick and place head manages loading/unloading and tray handling with customizable, durable construction.
Concentricity＜0.05 mm
Static torque0.06 N.m
Maximum speed800 rpm
Theoretical rotational error accuacy±0.09 °
Net weight160 g
Motor frame diameter28 mm
Number of axes2 axis
Carton dimensions195*105*135 mm
Functions and features:
1. 360° rotation
2. Vacuum suction and vacuum breaker
3. Compact, convenient and cost effective
4. Three set screws secure the nozzle, featuring concentricity and higher precision
5. Compatible with universal JUKI nozzles
Key parameters:
1. Concentricity: ＜0.05 mm
2. Hollow-core 28mm stepper motor, static torque: 0.06 N.m
3. Maximum speed: 800 rpm
4. Net weight: 155 ± 5 g
5. Theoretical rotational error accuacy ± 0.09°
Stepper motor parameter
1. Step angle: 1.8° ±5% 2. Number of phase: 2 3. Phase voltage: 2.1 VDC 4. Phase current: 1.0 Amp 5. Phase resistance: 2.1 Ω ±10% (at 20℃) 6. Phase inductance: 1.5 mH ±20% 7. Insulation class: Class B 8. Insulation resistance: 100 MΩ min. (500 VDC) 9. Ambient temperature: -20℃ to ＋50℃ 10. Ambient humidity: 15% to 95% 11. Motor weight: Approx. 120 g 12. Operating voltage: 12-24 VDC
| Concentricity | ＜ 0.05 mm |
| Static torque | 0.06 N.m |
| Maximum speed | 800 rpm |
| Theoretical rotational error accuacy | ± 0.09° |
| Net weight | 160 g |
| Motor frame diameter | 28 mm |
| Number of axes | 2 axis |
| Carton dimensions | 195*105*135 mm |

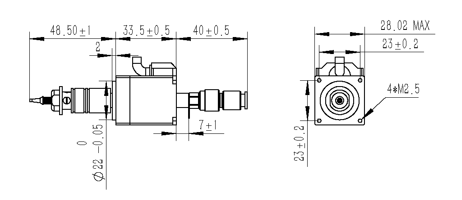

Detailed engineering drawings
Our team offers custom prototyping, testing, and production engineering services.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
