SMT Customizable Pick and Place Head BT12812
A versatile pick and place head engineered for high-speed, high-accuracy placement, customizable for loading/unloading and tray handling tasks.
Concentricity<0.2 mm
static torque0.04 N.m
Maximum speed800 rpm
Theoretical rotational error accuacy±0.09 °
Net weight151 g
Motor frame diameter20 mm
Number of axes2 axis
Carton dimensions195*105*135 mm
Functions and features:
1. 360° rotation
2. Vacuum suction and vacuum breaker
3. Compact, convenient and cost effective
4. Three steel balls secure the nozzle, allowing quick manual replacement of the nozzles
5. Compatible with universal nozzles
Key parameters:
1. Concentricity: < 0.2 mm
2. Hollow-core 20mm stepper motor, static torque: 0.04 N.m
3. Maximum speed: 800 rpm
4. Net weight:146 ± 5 g
5. Theoretical rotational error accuacy ± 0.09°
Stepper motor parameter
1. Step angle: 1.8° ±5% 2. Number of phase: 2 3. Phase voltage: 2.1 VDC 4. Phase current: 1.0 Amp 5. Phase resistance: 2.1 Ω ±10% (at 20℃) 6. Phase inductance: 1.5 mH ±20% 7. Insulation class: Class B 8. Insulation resistance: 100 MΩ min. (500 VDC) 9. Ambient temperature: -20℃ to ＋50℃ 10. Ambient humidity: 15% to 95% 11. Motor weight: Approx. 120 g 12. Operating voltage: 12-24 VDC
| Concentricity | < 0.2 mm |
| static torque | 0.04 N.m |
| Maximum speed | rpm |
| Theoretical rotational error accuacy | ± 0.09° |
| Net weight | 151 g |
| Motor frame diameter | 20 mm |
| Number of axes | 2 axis |
| Carton dimensions | 195*105*135 mm |

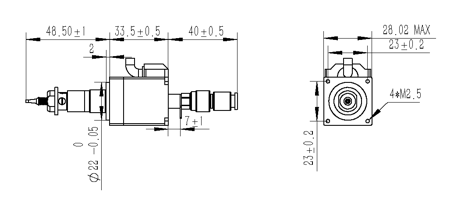

Detailed engineering drawings
Your requirements, our engineering — fully customized services designed for your success.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
