Pick and Place Handheld Vacuum Suction Rotary Assembly
This semi-automatic handheld vacuum suction and rotating assembly is designed for pick and place material handling and can be customized to meet specific customer requirements.
Concentricity≤ 0.05 mm
Static torque0.17 N.m
Maximum speed800 rpm
Theoretical rotational accuracy± 0.09 degrees
Net weight2000 g
Motor frame diameter28 mm
Warranty12 months
Lead time5-7 days
Functions and features:
1. 360° rotation mechanism for flexible material alignment.
2. Vacuum suction and vacuum breaker
3. Compact, convenient and cost effective
4. Three set screws secure the nozzle, featuring concentricity and higher precision
5. Compatible with universal JUKI nozzles
6. Customizable pick and place head to fit specific production needs
7. Semi-automatic operation allows for precise manual control over pick and place tasks
8. OEM/ODM services available for specialized interface requirements
9. Compact and lightweight body for easy handling in tight spaces
10. Durable construction designed for high-frequency industrial usage
Key parameters:
1. Concentricity: ≤ 0.05 mm
2. Hollow-core 28mm stepper motor, static torque: 0.17 N.m
3. Maximum speed: 800 rpm
4. Net weight: 230 ± 5 g
5. Theoretical rotational accuracy ± 0.09°
Stepper motor parameter
1. Step angle: 1.8° ±5%
2. Number of phase: 2
3. Phase voltage: 5.5 VDC
4. Phase current: 1.0 Amp
5. Phase resistance: 5.5 Ω ±10% (at 20℃)
6. Phase inductance: 5.6 mH ±20%
7. Insulation class: Class B
8. Insulation resistance: 100 MΩ min. (500 VDC)
9. Ambient temperature: -20℃ to ＋50℃
10. Ambient humidity: 15% to 95%
11. Motor weight: Approx. 200 g
12. Operating voltage: 12-24 VDC
| Pick and Place Head | Value |
| Concentricity | ≤ 0.05 mm |
| Static torque | 0.17 N.m |
| Maximum speed | 800 rpm |
| Theoretical rotational accuracy | ± 0.09° |

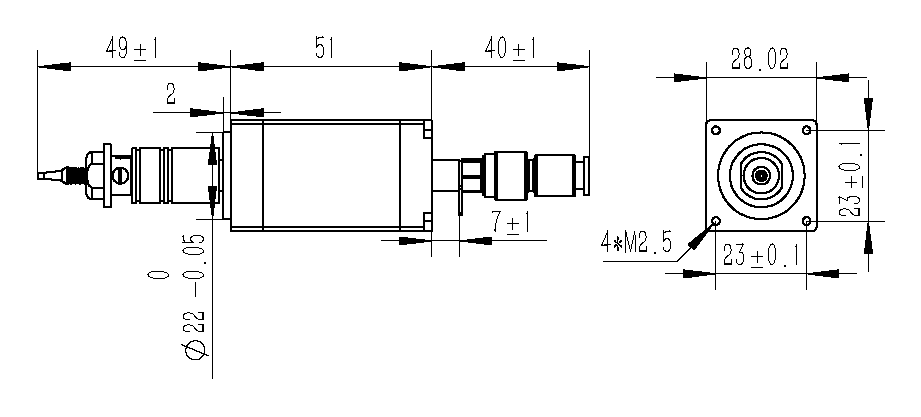

Detailed engineering drawings
We offer OEM/ODM customization services. Our engineering team will tailor the design to your specifications and provide 3D drawings for your final review.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
