Customizable SMT Mounting Head BT125S03
Engineered for high-performance placement, our pick-and-place head delivers fast, precise operation with customizable, cost-effective design.
Concentricity≤0.05 mm
Static torque0.105 N.m
Maximum speed6000 rpm
Theoretical rotational error accuacy±0.01 °
Net weight255 g
Voltage48 V
Number of axes2 axis
Carton dimensions195*105*135 mm
Functions and features:
1. 360°rotation
2. Vacuum suction and vacuum breaker
3. Small, portable and cost-effective
4. Three set screws secure the nozzle, featuring concentricity and higher precision
5. Compatible with universal JUKI nozzles
Key parameters:
1. Concentricity: ≤ 0.05 mm
2. 48V low-voltage DC and 33W hollow-through shaft servo motor, static torque: 0.105N.m; peak torque: 0.315 N.m
3. Rated speed: 3000 rpm, maximum speed: 6000 rpm
4. Net weight: 255 ± 5 g
5. Theoretical rotational error accuacy ± 0.01°
Servo motor parameter
1. Rated Voltage: 48 VDC 2. Rated Power: 33 W 3. Pole Pairs: 5 4. Static Torque: 0.105 Nm 5. Rated Torque: 0.105 Nm 6. Peak Torque: 0.315 Nm 7. Static Current：2 Arms 8. Rated Current: 2 Arms 9. Peak Current: 6 Arms 10. Rated Speed: 3000 rpm 11. Max Speed: 6000 rpm 12. Torque Coefficient: 0.0525 Nm/A 13. Moment of Inertia: 6.7 14. Protection Rating: IP54 15. Insulation Class: Class F 16. Phase Resistance: 3.5 Ohm 17. Phase Inductance: 0.92 mH 18. Back EMF: 3.5 V/krpm 19. Motor Total Length (L): 73.5 mm
| Concentricity | ≤ 0.05 mm |
| Static torque | 0.105 N.m |
| Maximum speed | 6000 rpm |
| Theoretical rotational error accuacy | ± 0.01° |
| Net weight | 255 g |
| Voltage | 48 V |
| Number of axes | 2 axis |
| Carton dimensions | 195*105*135 mm |

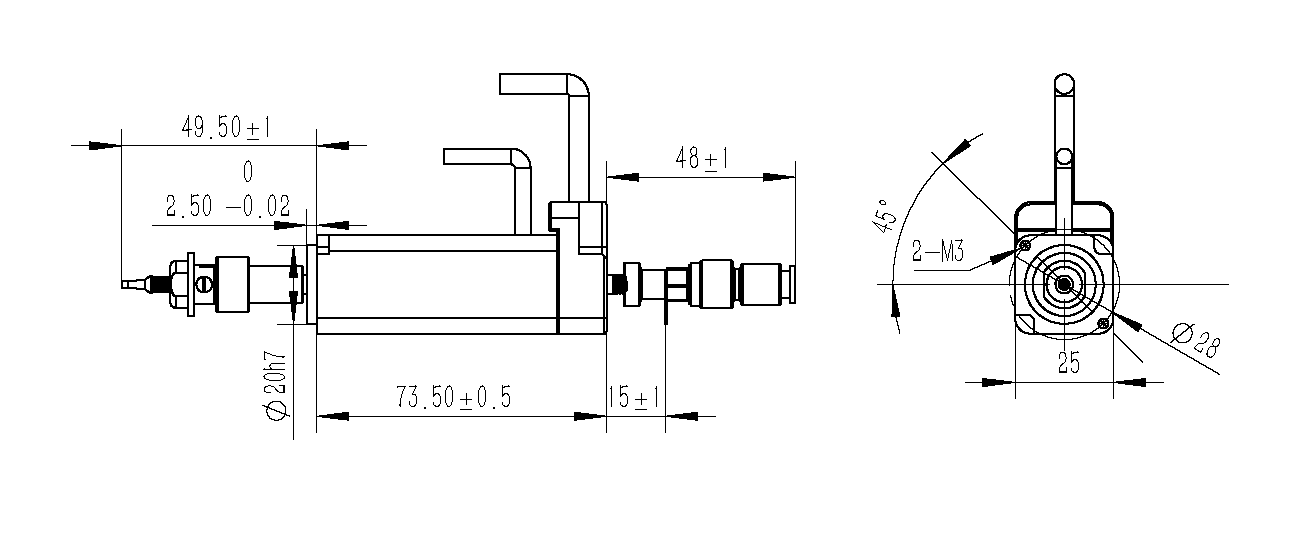

Detailed engineering drawings
Cost-effective customized solutions engineered by our team for maximum production value.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
