SMT Cost Effective Pick and Place Head BT1030
This high-speed, high-precision pick and place head delivers reliable performance for loading/unloading and film application, fully customizable to your needs.
Concentricity≤0.05 mm
Static Torque0.04 n.M
Maximum Speed600 Rpm
Theoretical rotational error accuacy±0.09 °
Net weight103 g
Motor frame diameter20 mm
Number of axes2 axis
Carton dimensions195*105*135 mm
Functions and features:
1. 360° rotation
2. Vacuum suction and vacuum breaker
3. Compact, convenient and cost effective
4. Three set screws secure the nozzle, featuring concentricity and higher precision
5. Compatible with universal nozzles
Key parameters:
1. Concentricity: < 0.2 mm
2. Hollow-core 20mm stepper motor, static torque: 0.04 N.m
3. Maximum speed: 600 rpm
4. Net weight: 95 ± 5 g
5. Theoretical rotational error accuacy ± 0.09°
Stepper motor parameter
1. Step angle: 1.8° ±5% 2. Number of phase: 2 3. Phase voltage: 7.5 VDC 4. Phase current: 0.6 Amp 5. Phase resistance: 12.5 Ω ±10% (at 20℃) 6. Phase inductance: 5.5 mH ±20% 7. Insulation class: Class B 8. Insulation resistance: 100 MΩ min. (500 VDC) 9. Ambient temperature: -20℃ to ＋50℃ 10. Ambient humidity: 15% to 95% 11. Motor weight: Approx. 80 g 12. Operating voltage: 12-24 VDC
| Concentricity | ≤ 0.05 mm |
| Static Torque | 0.04 n.M |
| Maximum Speed | 600 Rpm |
| Theoretical rotational error accuacy | ± 0.09° |
| Net weight | 103 g |
| Motor frame diameter | 20 mm |
| Number of axes | 2 axis |
| Carton dimensions | 195*105*135 mm |

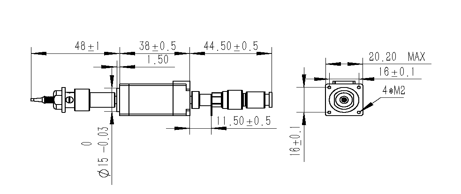

Detailed engineering drawings
Our engineering department offers configurable, tailor-made services for any production line.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
