SMT Placement Head Module BTZ-12812
This high-efficiency pick and place head module is crafted for diverse applications like tray handling and film application, offering a durable and versatile solution for modern production lines.
Z-axis maximum speedreciprocating in 0.28 seconds
R-aixs concentricity0.05-0.2 mm
Vertical repeatability0.05 mm
Maximum vertical stroke range19 mm
Net weight700 g
Motor frame diameter28 mm
Number of axes2 axis
Carton dimensions290*170*190 mm
Functions and features:
1. Z-axis vertical movement
2. 360° rotation on the R-axis
3. Vacuum suction and vacuum breaker
4. Compact and lightweight
5. R-axis is optional with various models of 20mm or 28mm hollow-core motor
Key parameters:
1. Z-axis maximum speed: reciprocating in 0.28 seconds
2. R-aixs concentricity: 0.05 mm - 0.2 mm * decided by the configuration of the optional R-axis model
3. Weight: 700 ± 50 g
4. Vertical repeatability: 0.05 mm
5. Maximum vertical stroke range: 19 mm
Stepper motor parameter
1. Step angle: 1.8° ±5% 2. Number of phase: 2 3. Phase voltage: 2.1 VDC 4. Phase current: 1.0 Amp 5. Phase resistance: 2.1 Ω ±10% (at 20℃) 6. Phase inductance: 1.5 mH ±20% 7. Insulation class: Class B 8. Insulation resistance: 100 MΩ min. (500 VDC) 9. Ambient temperature: -20℃ to ＋50℃ 10. Ambient humidity: 15% to 95% 11. Motor weight: Approx. 120 g 12. Operating voltage: 12-24 VDC
| Z-axis maximum speed | reciprocating in 0.28 seconds |
| R-aixs concentricity | 0.05-0.2 mm |
| Vertical repeatability | 0.05 mm |
| Maximum vertical stroke range | 19 mm |
| Net weight | 700 g |
| Motor frame diameter | 28 mm |
| Number of axes | 2 axis |
| Carton dimensions | 290*170*190 mm |

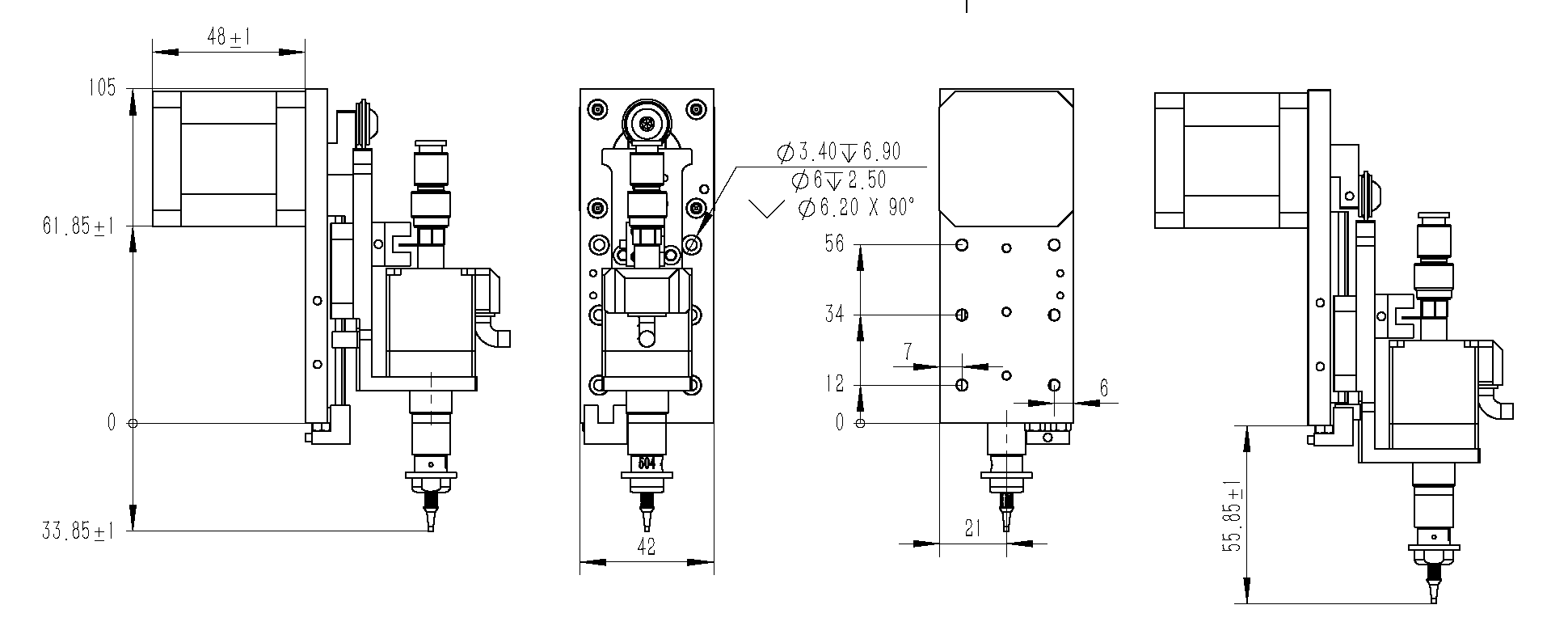

Detailed engineering drawings
Our engineering team can provide tailored designs to meet specific project requirements.
05 / Engineering Matching
Need the module adapted to your workpiece or machine layout?
We can support a configuration discussion around nozzle geometry, connecting bar structure, vacuum pickup conditions, Z-axis travel, R-axis motor selection, mounting holes, cycle expectation and multi-station requirements.
01Send the requirementPart drawing, dimensions, material
and target process
02Review the motion configurationStroke, rotation, vacuum
and installation matching
03Confirm tooling & solutionNozzle, connecting bar and
integration details
